Yamaha 4-Stroke 1000 FX '05-08, FX140 '02-04, FX Cruiser '03-08 Individual Gaskets

SKU
Original price $1.16 - Original price $71.47
Original price
$1.16
$1.16 - $71.47
Current price $1.16

Fits: 2002-2004 Yamaha FX140, 2005-2008 FX, 2003-2008 FX Cruiser.

REF. # OEM # PART # DESCRIPTION REQ'D
 1 93210-18417-00 008-692 Pipe O-Ring #1 1
 2 60E-11193-01-00 007-593-04 Head Cover Gasket 1
 3 93210-18417-00 008-692 Pipe O-Ring #2 1
 4 4KG-1111G-00-00 009-791 Valve Cover Hold Down Seal 6
 5 60E-12494-00-00 008-683-09* Pipe Seal 1
 6 60E-11181-01-00 007-593-05 Cylinder Head Gasket 1
 7 90430-09002-00 008-683-07 Fuel Injector Seal 4

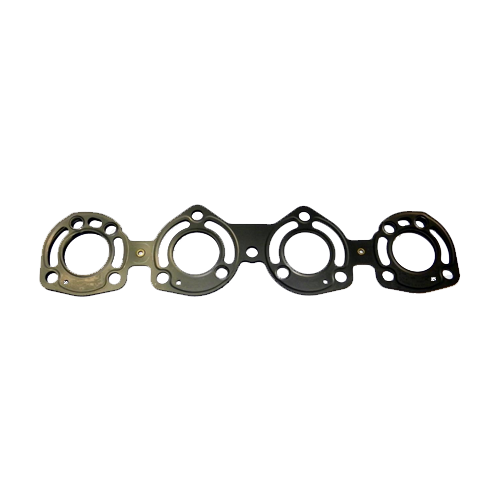

8 60E-14613-00-00 007-594 Exhaust Manifold Gasket 1
 9 60E-14739-01-00 007-594-01 Exhaust Muffler Dampner #1 1
10 60E-14749-01-00 007-594-02 Exhaust Muffler Dampner #2 1
 11 60E-14623-00 007-594-03 Exhaust Pipe Gasket 1
12 4FM-12213-00-00 007-597 Chain Tensioner Gasket 1
13 4TV-12119-00-00 010-051 Intake Valve Stem Seal 12
14 4SV-12119-00-00 010-052 Exhaust Valve Stem Seal 8
15 93210-06667-00 008-683-19 Crankcase O-Ring #1 2
16 93210-08001-00 526-07 Crankcase O-Ring #2 1

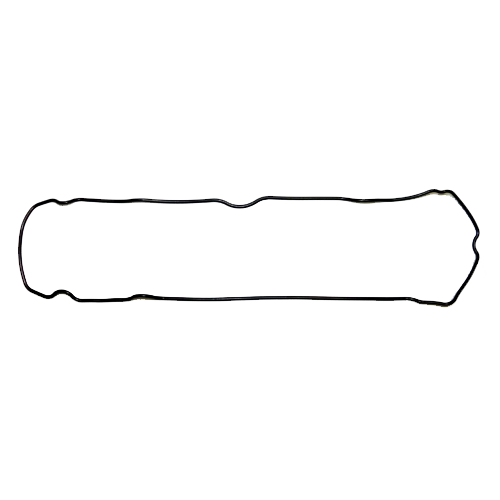

17 60E-13557-00-00 008-683-10 Oil Pan Gasket 1

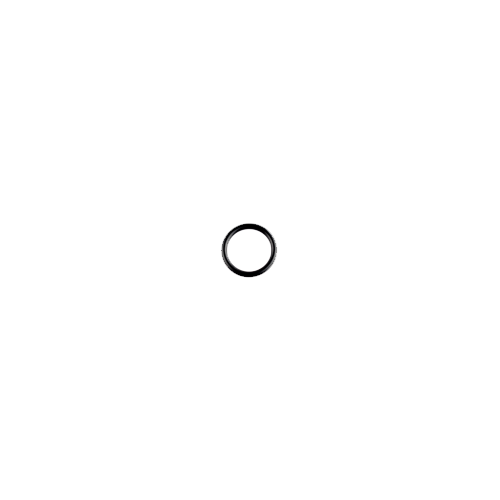

18 93210-17006-00 008-683-06 Crankcase O-Ring #3 1
19 93212-04001-00 008-418-01 Generator Cover Gasket 1

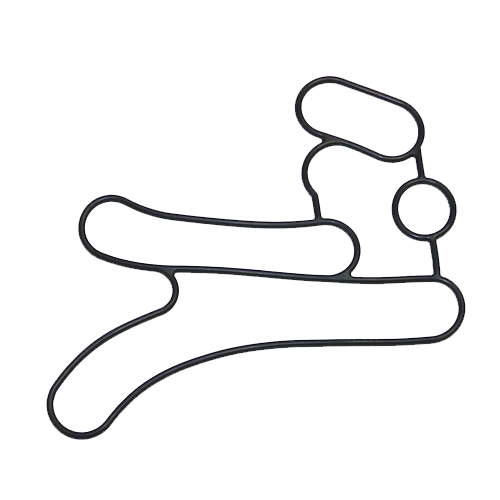

20 60E-13563-00-00 008-683-03 Oil Pump O-Ring #1 1

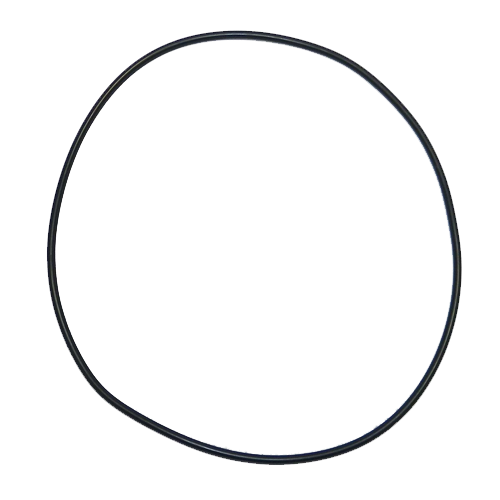

21 93211-95001-00 008-683-04 Oil Pump O-Ring #2 1
22 93101-35004-00 009-702-05J Oil Seal 2
23 60E-13473-00-00 008-692-01* Dip Stick O-Ring 1

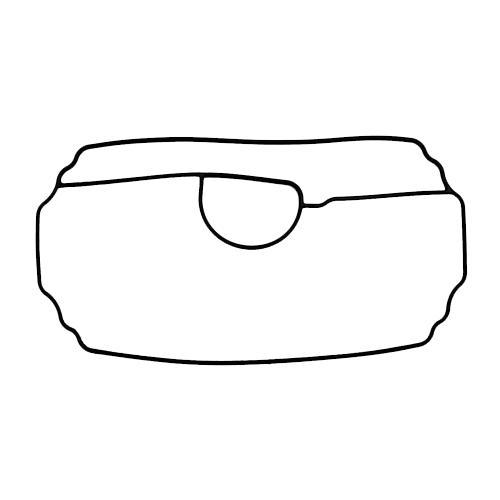

24 60E-13477-00-00 008-689-09 Oil Cooler O-Ring #1 1
25 60E-13475-00-00 007-597-03 Oil Cooler Gasket #1 1

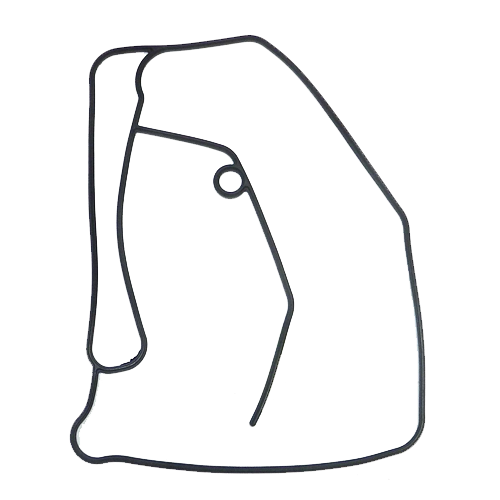

26 60E-13476-00-00 008-689-10* Oil Cooler O-Ring #2 2
27 93210-18322-00 008-689-02 Oil Cooler O-Ring #3 4

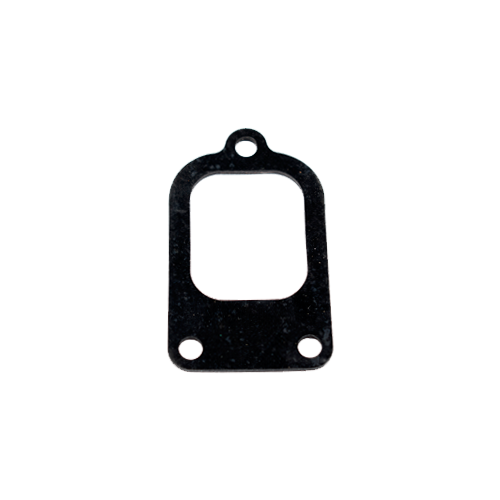

28 60E-13567-00-00 007-597-10 Oil Cooler Gasket #2 1
29 (N/S) 60E-14239-00-00 008-683-02* Intake Silencer Box Seal 4
NOTE: Part Numbers Marked "*" Are Not Included In Complete or Top End Kits.
Part Numbers Marked "N/S" Are Not Shown On Diagram.
